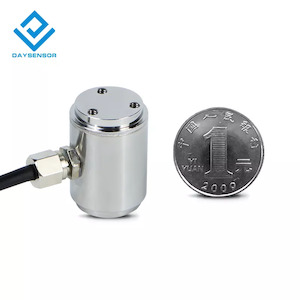

DYZ-102 Miniature Button Load Cell (10-50 kg)

The DYZ-102 Miniature Button Load Cell is a compact and versatile force sensor designed for applications where space is limited and precise measurement is essential. Its small size and robust construction make it ideal for integration into a wide range of industrial and research settings, including robotics, medical devices, and material testing. Key Features

- Compact Size: 13mm diameter design for applications with limited space constraints.
- High Accuracy: Provides precise and reliable force measurements.
- Durable Construction: Made of stainless steel with IP65 protection grade for use in various environments.
- Versatile Applications: Suitable for various industries and research fields, including 3C digital product production and testing, rail weighing scales, hopper scales, and platform scales.
- Simple Structure: Cost-effective and easy to integrate.
- Improved Sealing: The sealing diaphragm design enhances sealing performance and prevents damage to the sensor shell.
- High-Temperature Resistance: Capable of withstanding temperatures up to 150°C. Technical Specifications Parameter Value Range 0-50kg Material Stainless Steel Output Sensitivity 2.0 ± 10% mV/V Impedance 350 Ω Zero point output 2 %FS Non-linearity 0.2 %FS Hysteresis 0.1 %FS Repeatability 0.1 %FS Creep (30 min) 0.1 %FS Temperature Sensitivity Drift 0.1 %FS / 10 °C Zero point Temperature Drift 0.1 %FS / 10 °C Insulation Resistance ≥ 5000 MΩ / 100 VDC Service voltage 5 - 10 Vdc Operating Temperature Range -20 - 80 °C Safe Overload 120% Extreme Overload 150% Cable 5 core x 2m Cable Limit Tension 10 kg Response Frequency 10 kHz TEDS N/A Dimensions
