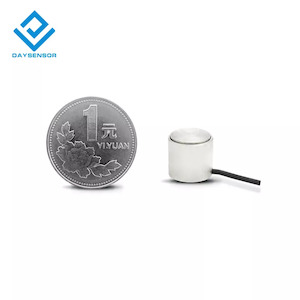

DYZ-103 Miniature Column Load Cell (10-150 kN)

The DYZ-103 Miniature Column Load Cell is a compact and versatile force sensor designed for applications where space is limited and precise measurement is essential. Its small size and robust construction make it ideal for integration into a wide range of industrial and research settings, including robotics, medical devices, and material testing. Key Features

- Compact Size: Miniature design for easy integration into space-constrained applications.
- High Accuracy: Provides precise and reliable force measurements.
- Durable Construction: Made of stainless steel with IP65 protection grade for use in various environments.
- Versatile Applications: Suitable for various industries and research fields, including 3C digital product production and testing, rail weighing scales, hopper scales, and platform scales.
- Simple Structure: Cost-effective and easy to integrate.
- Improved Sealing: The sealing diaphragm design enhances sealing performance and prevents damage to the sensor shell. Technical Specifications Parameter Value Range 0-150kN Material Stainless Steel Output Sensitivity 1.0-1.5mV/V Impedance 350 Ω Zero point output 2 %FS Non-linearity 0.5 %FS Hysteresis 0.1 %FS Repeatability 0.1 %FS Creep (30 min) 0.1 %FS Temperature Sensitivity Drift 0.05 %FS / 10 °C Zero point Temperature Drift 0.05 %FS / 10 °C Insulation Resistance ≥ 5000 MΩ / 100 VDC Service voltage 5 - 15 Vdc Operating Temperature Range -20 - 80 °C Safe Overload 150% Extreme Overload 200% Cable 5 core x 2m Cable Limit Tension 10 kg Response Frequency 10 kHz TEDS N/A
Dimensions

Range (kN) A B C D 10/20 16 14 15 50 50/75 22.4 20.4 22.4 100 100/150 31.8 28.9 28.7 125
