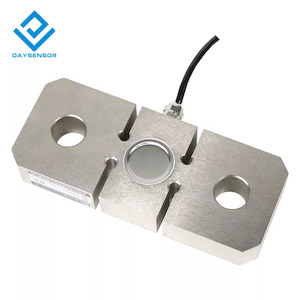

DYBH-101 Large Capacity Shear Beam Load Cell (1 - 100 ton)

The DYBH-101 Large Capacity Shear Beam Load Cell is a robust and reliable force sensor designed for high-precision measurement in heavy-duty industrial applications. Its shear beam design and durable alloy steel construction ensure accurate and stable performance even under substantial loads. This load cell is ideal for use in various weighing systems, material testing machines, and industrial automation processes requiring high accuracy and durability. Key Features

- High Capacity: Measures a wide range of forces, from 1 to 100 tons.
- Robust Construction: Alloy steel material provides excellent durability and stability.
- Accurate and Reliable: Shear beam design ensures precise and consistent measurements.
- Easy Installation: Designed for straightforward integration into various systems.
- Versatile Applications: Suitable for heavy-duty weighing systems, material testing, and industrial automation. Technical Specifications Parameter Value Range 1 - 100 tons Measurement Type Tension and Compression Material Alloy Steel Operating Temperature Range -20 - 60 °C Safe Overload 150% Extreme Overload 300% Output Sensitivity 2.0 ± 0.05 mV/V Excitation Voltage 5 - 15 Vdc Impedance 350 Ω Insulation Resistance ≥ 5000 MΩ / 100 VDC Cable 5 core x 3m Creep (30 min) 0.1 %FS Zero Point ± 1 %FS Non-linearity 0.3 %FS Hysteresis 0.3 %FS Repeatability 0.1 %FS Zero point Temperature Drift per 10 °C 0.05 %FS / 10 °C Sensitivity Temperature Drift per 10 °C 0.05 %FS / 10 °C Response Frequency 10 kHz Dimensions
