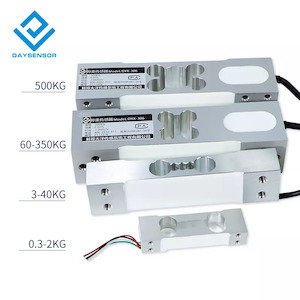

DYX-306 Single Point Shear Beam Load Cell (0.3 - 1000 kg)
The DYX-306 Single Point Shear Beam Load Cell is a versatile and cost-effective solution for high-precision force measurement in a variety of industrial applications. This load cell offers a simple structure, convenient installation, and reliable performance, making it suitable for use in various weighing and force measurement systems. Key Features
- Simple structure and convenient installation
- Reliable use and long service life
- High cost-effectiveness
- Suitable for various industrial scales and weighing equipment
- Multiple capacity ranges available, from 0.3 kg to 500 kg
- High accuracy and stability
- Operating temperature range: -20°C to 80°C Technical Specifications Parameter Value Range 0.3 kg - 1000 kg (depending on version) Measurement Type Tension and Compression Material Aluminum Alloy Operating Temperature Range -20 - 80 °C Safe Overload 150% Extreme Overload 200% Output Sensitivity 2.0 ± 0.05 mV/V Excitation Voltage 5 - 15 Vdc Impedance 350 Ω Insulation Resistance ≥ 5000 MΩ / 100 VDC Cable 5 core x 3m Creep (30 min) 0.03 %FS Zero Point ± 1 %FS Non-linearity 0.02 %FS Hysteresis 0.03 %FS Repeatability 0.02 %FS Zero point Temperature Drift 0.03 %FS / 10 °C Sensitivity Temperature Drift 0.03 %FS / 10 °C Response Frequency 10 kHz
Dimensions
The DYX-306 Single Point Shear Beam Load Cell is available in four versions (A, B, C, and D) with different mechanical dimensions to accommodate various weight ranges. Please refer to the datasheet for detailed dimensions of each version.
