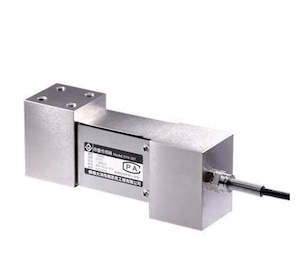

DYX-307 Shear Beam Load Cell (50 kg - 1 ton)

The DYX-307 Shear Beam Load Cell is a robust and reliable force sensor designed for high-precision measurement in various industrial applications. Its shear beam design and durable alloy steel construction ensure accurate and stable performance even under heavy loads. This load cell is ideal for use in a variety of weighing systems and industrial automation processes. Key Features

- Measures force in tension and compression.
- Wide range of capacities available, from 50 kg to 1 ton.
- High accuracy and stability.
- Alloy steel construction for durability.
- Operating temperature range: -20°C to 60°C.
- Simple installation.
- Suitable for use in various industrial scales and weighing equipment. Technical Specifications Parameter Value Range 50 kg - 1 ton Measurement Type Tension and Compression Material Alloy Steel Operating Temperature Range -20 - 60 °C Safe Overload 150% Extreme Overload 200% Output Sensitivity 2.0 ± 0.05 mV/V Excitation Voltage 5 - 15 Vdc Impedance 350 Ω Insulation Resistance ≥ 5000 MΩ / 100 VDC Cable 5 core x 3m Creep (30 min) 0.03 %FS Zero Point ± 1 %FS Non-linearity 0.03 %FS Hysteresis 0.03 %FS Repeatability 0.03 %FS Zero point Temperature Drift per 10 °C 0.05 %FS / 10 °C Sensitivity Temperature Drift per 10 °C 0.03 %FS / 10 °C Response Frequency 10 kHz Dimensions
