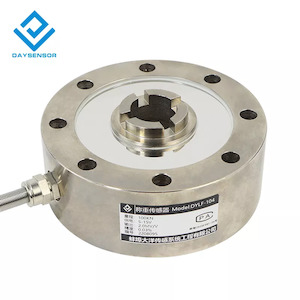

DYLF-104 Spoke Type Load Cell (10 - 100 kN)

The DYLF-104 Spoke Type Load Cell is a high-precision force sensor designed for tension and compression measurements in various industrial applications, such as material testing machines, hopper scales, and other weighing systems. This robust sensor is constructed from alloy steel for enhanced durability and features a compact, low-profile design for easy integration into diverse systems. Key Features:

- Measures force in tension and compression.
- Wide range of capacities available, from 10 to 100 kN.
- High accuracy and stability, with non-linearity of 0.05%FS.
- Operating temperature range: -20°C to 80°C.
- Simple installation with threaded ends.
- Strong resistance to partial load and lateral force. Technical Specifications: Parameter Value Range 10 - 100 kN Measurement Type Tension and Compression Mounting Spoke-type load cell with female thread Material Alloy Steel Operating Temperature Range -20~80 °C Safe Overload 150% Extreme Overload 200% Frequency Response 10 kHz Output Sensitivity 2.0 ±10% mV/V Excitation Voltage 5~15 Vdc Impedance 700/1400Ω Insulation Resistance ≥5000 MΩ @100 Vdc Cable 5 core x 5m Creep (30 min) 0.03 %FS Zero Point ±1 %FS Non-linearity 0.05 %FS Hysteresis 0.05 %FS Repeatability 0.03 %FS Zero point Temperature Drift per 10 °C 0.05 %FS Sensitivity Temperature Drift per 10 °C 0.03 %FS

Dimensions:
