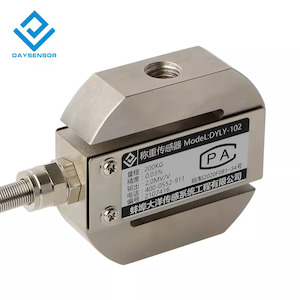

DYLY-102 S-Type Load Cell (1 kg - 5 ton)

The DYLY-102 S-Type Load Cell is a robust and versatile force sensor ideal for integration into various applications, including universal material test machines, hopper scales, hook scales, packaging scales, belt scales, plug force testers, and other automation equipment and test fields. This high-precision sensor is built to withstand demanding environments while delivering reliable performance.

Key Features:

- Measures force in tension and compression along two axes.
- High capacity range: 1 kg to 5 ton according to selection.
- Constructed from durable nickel-plated alloy steel.
- High accuracy and stability, with non-linearity of 0.03%FS.
- Wide operating temperature range: -20°C to 80°C.
- Compact design for easy integration. Technical Specifications: Parameter Value Range 1 kg to 5 ton Material Nickel-plated Alloy Steel Mounting S-type load cell with female thread (M8~M20) Output Sensitivity 2.0 mV/V ±10% Excitation Voltage 5~15 Vdc Impedance 350 Ω Insulation Resistance ≥5000MΩ/100VDC Cable 5 core. 2m (50kg~1T), 5m (2~7T) Creep (30 min) 0.03 %FS Non-linearity 0.03 %FS Hysteresis 0.03 %FS Repeatability 0.03 %FS Zero point Temperature Drift per 10°C 0.05 %FS Sensitivity Temperature Drift per 10°C 0.03 %FS

Dimensions:

Range M-Thread W-Width B-Depth H-Height 1~30kg M8x1.25 62 58 12 50~200kg M12x1.75 70 20 64 300~500kg M12x1.75 70 20 64 1T M16x2 70 64 25 1.5~7T M20x2.5 84 92 32
