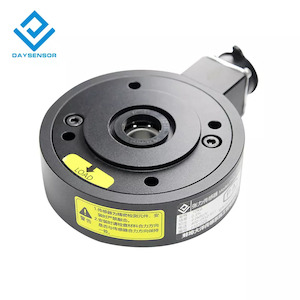

DYZL-105 Bearing Load Cell Sensor (20N - 30kN)

The DYZL-105 Bearing Load Cell Sensor is a specialized force sensor designed for accurate and reliable measurement of tension in various applications, particularly those involving wire ropes, web tension, and bearings. Its compact design and robust construction make it suitable for integration into a wide range of industrial settings, including those with limited space or harsh environmental conditions. Key Features

- Measures tension in wire ropes and bearings.
- Wide range of capacities available.
- High accuracy and stability.
- Alloy steel construction for durability.
- Operating temperature range: -20°C to 60°C.
- Simple installation and good interchangeability. Technical Specifications Parameter Value Range 10 kg ~ 3 ton Measurement Type Tension Material Alloy Steel Operating Temperature Range -20 - 60 °C Safe Overload 150% Extreme Overload 300% Output Sensitivity 2.0 ± 0.05 mV/V Excitation Voltage 5 - 15 Vdc Impedance 350 Ω Insulation Resistance ≥ 5000 MΩ / 100 VDC Cable 5 core x 3m Creep (30 min) 0.1 %FS Zero Point ± 1 %FS Non-linearity 0.3 %FS Hysteresis 0.3 %FS Repeatability 0.1 %FS Zero point Temperature Drift per 10 °C 0.02 %FS / 10 °C Sensitivity Temperature Drift per 10 °C 0.02 %FS / 10 °C Response Frequency 1 kHz
Dimensions
