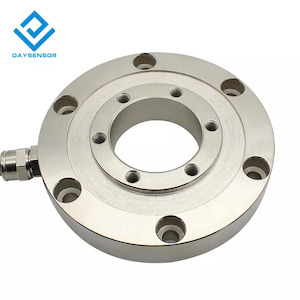

DYHX-003 Bolt Tension Sensor (50 kg - 5 ton)

The DYHX-003 Bolt Pre-tension Sensor is a specialized load cell designed for measuring and monitoring the axial pre-tension force of bolt connections in various industrial applications. This sensor helps to ensure the reliability and safety of bolted joints by preventing bolt loosening or overtightening. The DYHX-003 is constructed from high-quality alloy steel and features a compact design, making it suitable for various applications where space is limited. Key Features

- Measures axial pre-tension force of bolt connections.
- Improves the reliability and safety of bolted joints.
- Prevents bolt loosening or overtightening.
- Compact design for limited space applications.
- High-quality alloy steel construction.
- Suitable for various industrial and testing applications. Technical Specifications Parameter Value Range 5000kg Material Alloy Steel Output Sensitivity 2.0 ± 10% mV/V Impedance 1400Ω Zero point output 2%FS Non-linearity 0.5%FS Hysteresis 0.3%FS Repeatability 0.3%F.S Creep (30 min) 0.1%FS Temperature Sensitivity Drift 0.05%F.S./10°C Zero point Temperature Drift 0.05%F.S./10°C Insulation Resistance ≥ 5000 MΩ / 100 VDC Service voltage 5-10v Operating Temperature Range -20-80°C Safe overload 120% Extreme overload 150% Cable 5 core x 3m Cable Limit Tension 10kg Response frequency 10kHz Dimensions
