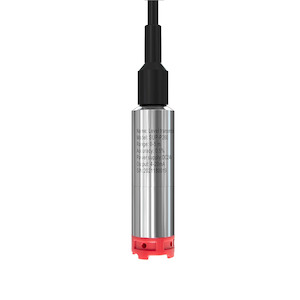

Supmea WSP260 Submersible Hydrostatic Level Transmitter

Accurate and Reliable Level Measurement for Liquids

The Supmea P260 is a submersible hydrostatic level transmitter designed for continuous liquid level measurement in a range of industrial and environmental applications. This robust and reliable device utilizes a high-performance diffused silicon piezoresistive pressure sensor to accurately measure the hydrostatic pressure proportional to the liquid level depth. The P260 converts this pressure reading into a standard signal (current, voltage, or RS485) for easy integration with your monitoring and control systems. This makes it ideal for liquid level monitoring in tanks, sumps, and wells, as well as for applications such as groundwater monitoring, surface water measurement, and industrial process control in industries like chemical processing, water treatment, and food and beverage production. Key Features:

- High Accuracy: 0.5% accuracy ensures precise level measurement for critical applications.
- Wide Measurement Range: Measures depths from 0.5 to 200 meters of water column, making it suitable for diverse applications.
- Multiple Output Options: Choose from 4-20mA, 1-5V, 0-10V, or RS485 outputs to match your system requirements.
- Durable Construction: IP68 protection rating ensures reliable operation in harsh industrial environments.
- Easy Installation: Submersible design allows for straightforward installation and maintenance. Technical Specifications: Parameter Value Measurement Range 0.5m to 200m H2O Accuracy 0.5% Output Signal 2-wire 4-20mA STANDARD, 1-5V, 0-10V, RS485 Power Supply 12-32VDC Operating Temperature -10 to 65°C Compensation Temperature -10 to 70°C Ingress Protection IP68 Material 316L Stainless Steel Response Time ≤10ms
