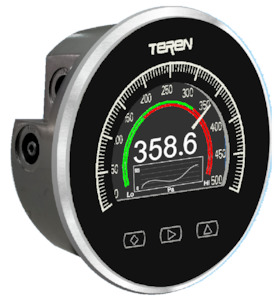

Teren SDP Smart Differential Pressure Gauge/Transmitter/Switch

The a versatile device that combines differential pressure detection, display, output, and alarm control. It features a color TFT-LCD that integrates a traditional pointer with a digital display and add a local historic trend/chart.

This device measures positive, negative, or differential pressure and is suitable for monitoring system pressure in various applications, including fans, blowers, filters, and clean room environments.

It offers optional relays for alarm settings and has a slim design for surface, panel, or flush mounting. The size is a drop-in replacement for traditional analogue gauges. Users can select from multiple ranges, outputs, alarm functions, and engineering units.

Key features include accurate measurement, even at low ranges (as low as 25 Pa), function keys for easy setup, and a color display that shows measured values, alarm status, and trend charts.

Key Features:

- Combines pressure measurement, display, output, and alarm control
- Color TFT-LCD integrates pointer and digital display
- Measures positive, negative, or differential pressure
- Suitable for fans, filters, clean rooms, and more
- Optional relays for alarm settings
- Slim design for flexible mounting
- Selectable ranges, outputs, and units
- Accurate measurement, even at 25 Pa
- Function keys for easy setup
- Color display with various display formats Technical Specifications: Parameter Value Sensor MEMS sensor Medium Non-combustible, non-corrosive air Temperature Range 0-60°C (Medium), -20-70°C (Work Env.) Housing ABS or Cast aluminum Display 3.5" TFT color LCD Accuracy ±0.5% FS (up to ±1.0% FS) Pressure Ranges See table below Output 0-10V & 4-20mA, RS485/Modbus Output Load ≤500Ω (current), ≥2kΩ (voltage) Relay Output 2 x SPST or 1 x Buzzer Power 16-28VAC, 9-28VDC Connection 1/8" ID tubing, two pairs Protection IP65 Approval CE
