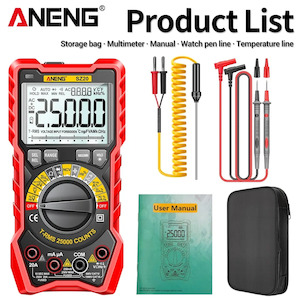

Aneng SZ20 Multimeter - 25,000 Counts

The Aneng SZ20 is a true RMS auto-ranging digital multimeter with a 25, 000 count display. It offers a wide range of measurement functions, including AC/DC voltage and current, resistance, continuity, diode testing, capacitance, frequency, duty cycle, and temperature. The multimeter also features non-contact voltage detection (NCV) and can measure AC DC voltage.

Technical Specifications Feature/Measurement Specification/Range General Specs
Sampling Rate Approx. 3 times/second Display LCD Over Range Indication OL Polarity Display Automatic, negative indicated by "-" symbol Power Supply AAA 1.5 V x 2 Low Battery Indication Yes Auto Power Off After approx. 15 minutes of inactivity Dimensions 135 mm x 65 mm x 33 mm Weight Approx. 160 g (with batteries) Electrical Measurements
DC Voltage 600.0 mV / 6.000 V / 60.00 V / 600.0 V / 1000 V AC Voltage 6.000 V / 60.00 V / 600.0 V / 750 V DC Current 60.00 mA / 600.0 mA / 10.00 A AC Current 60.00 mA / 600.0 mA / 10.00 A Resistance 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ Capacitance 9.999 nF / 99.99 nF / 999.9 nF / 9.999 μF / 99.99 μF / 999.9 μF / 9.999 mF / 50.00 mF Frequency 99.99 Hz / 999.9 Hz / 9.999 kHz / 99.99 kHz / 999.9 kHz / 5 MHz Duty Cycle 0.1% to 99.9% Temperature -40.0 °C to 1000 °C / -40.0 °F to 1832 °F
