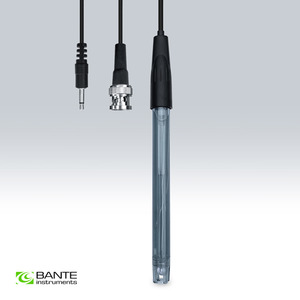

Bante E203-BNC pH Electrode with Integrated ATC (Epoxy Body)
The Bante E203-BNC is an advanced general-purpose pH electrode designed for convenient use in applications where temperature fluctuations can impact accuracy. The E203 features a built-in 10KΩ NTC temperature sensor , allowing compatible meters to perform Automatic Temperature Compensation (ATC) without needing a standalone temperature compensation sensor.
Housed in a rugged Epoxy (Plastic) body , this electrode combines the durability required for field use with the precision required for laboratory analysis. It eliminates the need for a separate temperature probe, streamlining your testing workflow. Ideal Applications
- Field Environmental Testing: Where sample temperatures vary significantly from calibration temperatures.
- Education & Training: Simplifies the measurement process for students.
- Hydroponics: Measuring nutrient tanks at varying temperatures.
- Water Treatment: Routine checks where speed and accuracy are balanced. Technical Specifications
Feature
Specification
Model
Bante E203-BNC
Body Material
Epoxy (Plastic)
pH Range
0.00 – 14.00 pH
Temperature Range
0 – 60°C (32 – 140°F)
Temperature Sensor
Built-in 10KΩ NTC Thermistor
Liquid Junction
Fiber
Reference System
Ag/AgCl (Single Junction)
Electrolyte
Gel (Sealed / Non-refillable)
Connector (pH)
Standard BNC
Connector (Temp)
Note: Ensure your meter accepts 10k NTC input via 2 pin 3.5mm socket (audio jack style connector).
Cable Length
1 Meter
Dimensions
120mm (Length) × 12mm (Diameter)
Expert Tip: Compatibility Check
Important: While the pH connection uses a universal BNC plug, the Temperature function requires your pH meter to support a 10KΩ NTC sensor.
- Connection: This probe typically has a dual-cable output (One BNC for pH, one auxiliary plug for Temperature) or a specific multi-pin connector depending on the batch configuration.
- Verification: Please check your pH meter's manual to confirm it accepts "10K NTC" temperature probes before purchasing to ensure the ATC function will operate correctly.
In the Box:
- 1x Bante E203-BNC pH/ATC Electrode
- 1x Storage Soaker Bottle (Pre-filled with KCL solution)
