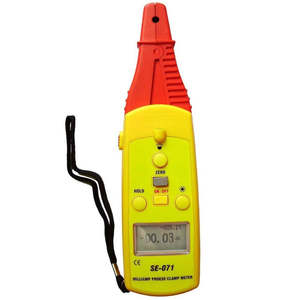

Kilter SE-071 - Current Clamp Meter for 4-20 mA Process Loops

This tool allows for easy measurement of 4-20 mA signals without disrupting the current loop. It has a user-friendly interface, high resolution of two decimals, and is well protected for use in industrial settings.

FEATURES: Immune to magnetic field interference, autozero on start-up, simultaneous display of current in mA and percentage of span (4-20 mA = 0-100%), data hold function, display backlight, and spotlight LED.

SPECIFICATIONS

Model No.

SE-071

Current Ranges

±40.00 mA

Resolution

0.01 mA

Accuracy

±0.5% of reading ±5 digits

Maximum Reading

±40.00mA

Influence of Earth's Field

< ±0.20 mA

Battery

9V Alkaline, IEC LR6

Size (H X W X L)

59 mm x 38 mm x 212 mm

Weight

260g (Including battery)

Operating Temperature

-10 to 50 °C

Storage Temperature

-25 to 70 °C

Operating Humidity

< 90
