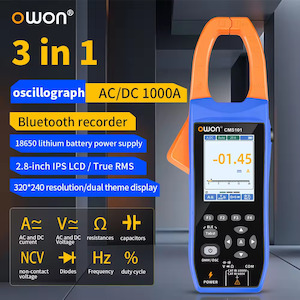

Owon CMS Clamp Scope Meter
Enhance your diagnostic capabilities with the Owon CMS Series Clamp Scope Meter, a versatile 3-in-1 device that seamlessly integrates an oscilloscope, clamp meter, and Bluetooth data logger. Designed for professionals in industrial automation, electronics, and field service, the CMS Series offers unparalleled flexibility and precision for a wide range of electrical measurements.
Key Features & Benefits:
Integrated Oscilloscope & Clamp Meter: This innovative combination provides a compact yet powerful tool for comprehensive electrical analysis. The integrated oscilloscope boasts a 1 MHz analog bandwidth and a real-time sampling rate of 5.0 MSa/s, allowing for detailed voltage waveform analysis. The clamp meter accurately measures AC/DC currents up to 1000A, with a 1 kHz bandwidth ideal for capturing harmonic currents up to the 20th order in 50 Hz systems, making it an excellent entry-level platform for power quality investigation.
Robust Multimeter Functions: Beyond its scope and clamp capabilities, the CMS Series offers a full suite of multimeter functions, including AC/DC voltage (up to 1000V), resistance (up to 100MΩ), capacitance (up to 20mF), frequency (up to 20MHz), and duty cycle. It also features diode/on-off buzzer, NCV (non-contact voltage) detection, data hold, and True RMS for accurate readings of non-sinusoidal waveforms.
Seamless Bluetooth Connectivity & Data Logging: Connect effortlessly to the free Owon app on your mobile device via Bluetooth. This feature enables remote control, real-time data viewing, graphical display of measurements, and convenient storage of data in CSV format for further analysis. This powerful data logging capability is crucial for long-term monitoring and detailed troubleshooting.
Intuitive Design & Durability: The CMS Series features a clear 2.8-inch IPS LCD with a 320x240 resolution and dual theme display, ensuring excellent readability in various lighting conditions. Its soft silicone buttons provide comfortable use and enhanced durability, preventing damage from accidental drops.
Optimized for Industrial Applications: The 38mm narrow-jaw design allows for easy access in tight spaces and accommodates larger wire diameters. The inrush current measurement function accurately captures transient currents amidst complex fluctuations, providing stable and reliable results. Customizable alarm thresholds ensure user safety by alerting to upper and lower limit deviations.
Extended Operation: Powered by a built-in 18650 lithium battery, the CMS Series offers long-lasting performance, ensuring you have the power you need for extended operations in the field.
The Owon CMS Series Clamp Scope Meter is more than just a tool; it's a comprehensive solution designed to empower you with precise measurements, advanced analysis, and efficient data management. We are committed to providing cutting-edge industrial solutions that evolve with your needs.
Partner with us to discover how the Owon CMS Series can elevate your testing and measurement capabilities. Our team is ready to assist you in finding the perfect solution for your specific requirements, offering fast delivery, customization options, and competitive pricing.
Technical Specifications: Owon CMS101 / CMS061
Feature
Specification (CMS101)
Specification (CMS061)
Accuracy
Multimeter Functions
DC Voltage (V)
20.000mV / 200.00mV / 2.000V / 20.00V / 200.00V / 1000V
"
± ( 0.1% 5 )
AC Voltage (V)
20.000mV / 200.00mV / 2.000V / 20.00V / 200.00V / 750V
"
± ( 0.6% 10 )
DC Current (A)
20.000A / 200.0A / 1000A
20.000A / 200.0A / 600A
± ( 2.0% 5 )
AC Current (A)
20.000A / 200.0A / 1000A
20.000A / 200.0A / 600A
± ( 2.5% 5 )
Surge Current (A)
20.000A / 200.0A / 1000A
20.000A / 200.0A / 600A
± ( 10.0% 10 )
Resistance ( Ω )
200.00 Ω
2.0000 kΩ
20.000 kΩ
200.00 kΩ
2.0000 MΩ
20.000 MΩ
100.00 MΩ
"
± ( 0.3% 5 )
Capacitance (F)
20.000nF / 200.00nF / 2.000uF / 20.00uF / 200.00uF / 2.000mF / 20.00mF
"
± ( 3.0% 10 )
Frequency (Hz)
200.00Hz / 2.0000kHz / 20.000kHz / 200.00kHz / 2.0000MHz / 20.000MHz
"
± ( 0.1% 5 )
Duty Cycle
0.1% - 99.9% (Typical: Vrms=1, f=100Hz)
"
± ( 1.2% 3 ) 0.1% - 99.9% (≥1 kHz)
"
±(2.5% 10) (for other ranges)
D
