Sotabeams Lightweight Green

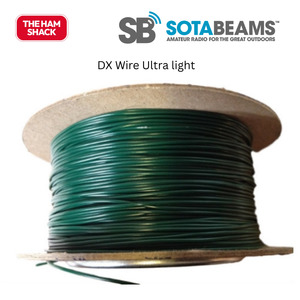

100m of wire, the same type as we use in our Band Hopper antennas. A nice ductile wire for easy handling and winding.

Suitable for power levels up to 150 Watts at 50 Ohms.

These wires are made for SOTABEAMS to our own specification.

Specifications

- DEF 61-12 Pt 6
- tinned annealed copper conductor,
- 0.22mm² total conductor CSA (cross sectional area) - approx. 24 AWG
- 7/0.2mm conductor stranding
- Conductor diameter approx 0.55mm
- Cable outer diameter 1.2mm
- Voltage Rating: 1000V rms
- PVC insulation
- Insulation colours: yellow or green or brown
- Current Rating: 2.0A at 25 °C
- Resistance: 88 milliOhms/m
- Velocity factor 0.97
- Weighs approximately 3.3 grams per metre.
- Price is per meter
