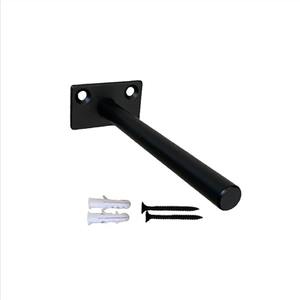

Floating Shelf Bracket

Iron Moa's floating shelf brackets insert into timber to support the shelf and give the appearance of a 'floating' shelf. The large but thin plate brackets makes it perfect for heavier timber or shelves supporting larger weight.

Brackets work with timber 30mm thick and greater. A thin profile makes the plate easy to install without the need to recess timber.

Price is for one bracket, screws and concrete plugs.

Specifications:

- Plate dimensions: H30mm x W51mm
- Plate thickness: 3mm
- Rod diameter: 12mm (300mm = 15mm diameter)
- 127mm for shelves 140mm - 175mm deep
- 153mm for shelves 175mm - 225mm deep
- 203mm for shelves 225mm - 310mm deep
- 300mm for shelves 310mm - 400mm deep

How to install: Use a 13mm/16mm drill bit to boar a hole in the timber. Attach bracket to wall and slide shelf into place. You can add glue as an optional way to hold the shelf in place but this is not required as timber grips brackets tightly in most cases.

Weight Capacity: We often get asked how much these can hold. This depends on your fixing and shelf depth. When attaching to timber studs and loading shelf evenly we advise these can hold up to 80kg a pair.
