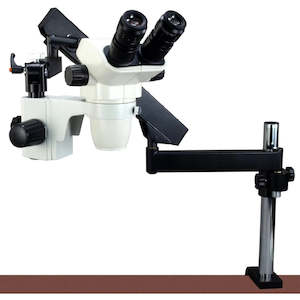

Omax 2x-45x Zoom Binocular Stereo Microscope w/Articulating Arm Stand & 0.5x Barlow Lens

- High quality optical glass elements
- 10X high eyepoint widefield eyepieces
- Zoom magnification from 2X to 45X
- 0.3X auxiliary lens gives larger field of view and longer working distance
- Sturdy articulating arm boom stand provides large working space

- High quality optical glass elements
- 10X high eyepoint widefield eyepieces
- magnification from 2X to 45X
- 0.3X auxiliary lens gives larger field of view and longer working distance
- Sturdy articulating arm boom stand provides large working space Specifications:

- Model: W42DF1-6D3
- Total magnification: 2X - 45X
- Microscope body
- Binocular, 360° rotatable viewing head
- 45° inclined ocular tubes
- Interpupillary distance adjustable: 54 - 75mm (2-1/8" - 2-15/16")
- Inner diameter of ocular tube: 30mm (1-3/16")
- Mounting size for auxiliary lens: 48mm female thread (M48X0.75)
- Eyepiece
- A pair of high eyepoint widefield WF10X/22, diopter adjustable
- Objective
- 0.67X ~ 4.5X
- ratio 6.7:1
- Auxiliary lens
- 0.5X magnification
- Top 48mm male thread
- Bottom 48mm female thread
- Working distance
- 105mm (4-1/8") with no auxiliary lens
- 268mm (10-9/16") with 0.3X auxiliary lens
- Field of view
- Max. 33mm (1-5/16") with no auxiliary lens
- Max. 110mm (4-5/16") with 0.3X auxiliary lens
- Articulating arm boom stand
- Table clamp: Max. opening 62mm (2-7/16")
- Articulating arm: Spring loaded for easy operating, multi-arm provides more flexibility
- 360° rotating horizontally
- Radius of working area: Max. 1040mm ( 41" )
- Diameter of microscope body holder: 76mm ( 3" )
- Focus block: rack and pinion adjustment, range 55mm (2-5/32")
- Net weight
- 13.6 kg ( 29 lb 15 oz)
Packing List:

- Binocular stereo microscope body
- A pair of WF10X/22 eyepieces
- Dust cover
- A 0.3X auxiliary lens
- A full set of articulating arm boom stand
