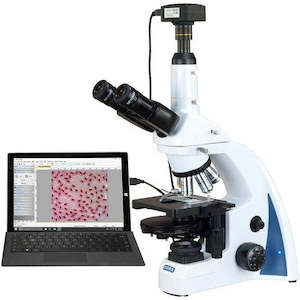

Omax 40X-3000x Trinocular Phase Contrast Microscope + 18MP Camera
Specimen Stage
The 2-layer mechanical stage provides smooth and precise movement for examination of specimen slides. The stage's low-position controls are conveniently placed near the coaxial focus knobs for a streamlined workflow. Examining specimen slides is intuitive and precise for users at any skill level. A convenient lever grouped with the left-side focus knobs can be used to lock and unlock the coarse focus adjustment to prevent damage to the lenses and specimen. LED Koehler Illumination
Built on Koehler illumination principals, the sub-stage lighting provides evenly-distributed light for optimal contrast. The LED light-source ensures energy-efficient illumination with low heat for live specimens. The bright light-source is daylight-balanced to produce natural colors for imaging. The Abbe light condenser has a high 1.25 numerical aperture for oil-immersion, and an iris diaphragm to optimize contrast and depth-of-field. The condenser holder uses rack-and-pinion height adjustment for precision control, and is centerable for proper alignment. The illuminator's field lens provides an iris diaphragm to control light-spread, optimizing contrast and definition in specimen features. Phase Contrast
A phase-contrast kit is included with a 5-position turret condenser and 4 plan-achromatic phase-contrast objective lenses. Phase contrast is used to reveal detail in indistinct objects, such as unstained cells and microorganisms that would otherwise appear invisible. By using a combination of specialized objective lenses and a modified light condenser, these invisible objects can be visualized by manipulating variations in phase. This turret condenser allows you to easily rotate through brightfield, darkfield, and three phase-contrast settings (10X/20X, 40X, 100X). Each phase-contrast setting has a centerable annulus for proper alignment. Each of the phase-ring equipped objective lenses has plan-achromatic corrections for improved color and resolution, as well as edge-to-edge sharpness. Digital Imaging
The included 18MP camera and software allow you to preview and record photos and videos on your computer. The camera attaches to your computer using a high-speed USB 3.0 connection. Our professional software for Windows provides a wide assortment of capture and photo-editing functions including color correction, time-lapse capture, and a full complement of measuring tools. Cutting-edge features such as real-time auto-stitching and focus-stacking add new dimensions to imaging. A lite version of our software is available for Mac and Linux with essential for capturing photos and videos. Packing List:
- One trinocular head
- One photo tube
- One microscope body with Abbe condenser
- Five brightfield objective lenses: 4X, 10X, 20X, 40X, 100X
- One power cord (US and Canada standard)
- One dust cover
- One sample immersion oil
- One phase-contrast turret condenser
- Four phase-contrast objective lenses: 10X, 20X, 40X, 100X
- One telescopic centering eyepiece
- One green filter
- One C-mount USB camera
- One reduction lens
- One USB 3.0 Type B to type A cable
- Software
