230 Series - 3 Vent - Pro Kit

The 230 version of the 200 Series includes a smaller additional outlet - refer to image.

The 230 series is made in the USA with durable aluminium construction and powder coated for extra protection against marine environments.

- This size heater is ideal for smaller boats with two/three seats - ideal for boats with a bench seat suitable for three seats. Also ideal for larger boats for heating the front seats only with the addition of a Hot Tube for direct heat.

Technical Specifications

- 12 Volt 163
- 28,000 BTU
- 12 V Amperage: Low 4.4, Med 5.8, High 8.5
- Air flow: Low 230 cfm, Med 248 cfm, High 260 cfm.
- Hose barb: 5/8"

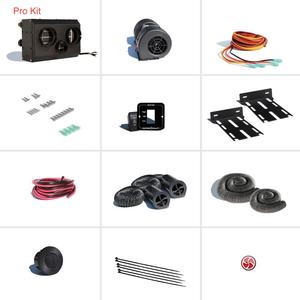

Pro Kit Includes

- One Heater Unit with wire 6' harness
- One High/Low switch
- 3" Vent hose (6 ft per vent)
- One 3" fixed euro vent
- One Hot Tube Gen 1
- Universal mounting brackets & screws
- 40 feet of heater hose
- One low idle "Y"
- 2 Brass fittings with clamps

Unit Dimensions:

9.4"W x 6.4"H x 8.6"D - 239mm W x 163mm H x 219mm (without mounting brackets)
