342 Series - 4 Vent - Sports Kit

- The 40,000 BTU/hr four vent heater is easily vented to front and rear seating. The ultimate for larger boats with multiple heating sources to the front and utilising Hot Tubes to be able to direct heat to the rear seating areas.

Technical Specifications

- 40,000 BTU
- Amperage: Low 4.4, Med 5.8, High 8.5 (15 amp fuse)
- Maximum estimated BTU/h: 40,000
- Air flow: Low 230 cfm, Med 228 cfm, High 263 cfm.
- Hose barb: 5/8"

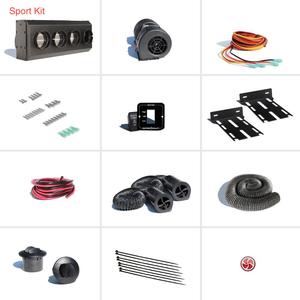

Sports Kit Includes:

- 1 Heater Unit w/wire harness
- 1 High Low switch with indicator assembly
- 3" Vent hose (6ft per vent)
- 2 fixed 3 inch Euro vents
- 2 Gen 2 Hot Tubes - Directional
- Universal mounting brackets & screws
- Heavy duty wire ties
- Installation Manual

Unit Dimensions:

16 W x 6.5 H x 9.5 D - 406mm W x 163mm H x 239mm D (without mounting brackets)
