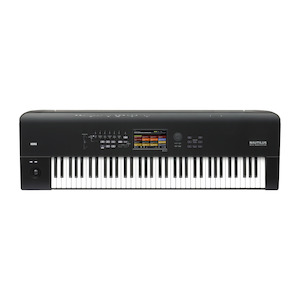

Korg Nautilus 73 Keys w/Light Touch

The most dazzling and expansive collection of sounds ever put into a Korg synthesizer

NAUTILUS pushes the boundaries of what a performance synth and workstation is capable of. With the power of nine engines to drive a new approach to sounds, plentiful sampling, audio recording, effects, and processing power, there is simply no other synth that delivers more to explore sonically, with the workflow to get you there faster than ever. Korg spent years refining all our digital, analog, processing, and hardware technologies and delivering them in a way that helps the musician connect with their instrument. The result is the incredibly powerful, one-of-a-kind NAUTILUS.

Specifications:
Disk Mode Load, save, utility, data filer function (save/load MIDI System Exclusive data), CD-R/RW (UDF format read/write), ISO9660 Level 1. Controllers Joystick, Switches 1 & 2
Arpeggiator Control: On/Off, Latch, Gate, Velocity, Length, Swing, Tempo
DRUM TRACK: On/Off, Swing, Drum SD, Tempo Display TouchView graphical user interface, 7 inch color TFT, WVGA (800 x 480 dots), adjustable brightness Principal Specifications Frequency Response
20Hz-22kHz, /-1.0dB, 10k Ω load
THD N
20Hz-22kHz, 0.01%, 10k Ω load (typical)
S/N
95dB (typical)
Dynamic Range
95dB (typical)
Crosstalk
95dB, at 1kHz (typical) Outputs L/MONO, R, Individual 1-4
1/4" TRS Balanced
Output Impedance: 350 Ω Stereo; 175 Ω Mono (L/MONO Only),
Nominal Level: 4.0 dBu,
Maximum Level: 16.0 dBu (when load impedance is 600 Ω or greater)
MAIN VOLUME slider controls only AUDIO OUTPUT (MAIN) L/MONO and R
Headphones
1/4" stereo phone jack
Output impedance: 33 Ω,
Maximum Level: 60 60 mW (when load impedance is 33 Ω),
MAIN VOLUME knob (link with AUDIO OUTPUT (MAIN))
USB-B
24-bit, Sample Rate: 48 kHz, 2 channels
(Digital output of the same signals as AUDIO OUTPUT (MAIN) L/MONO and R) Inputs Audio Inputs 1 and 2
1/4" TRS Balanced
Input Impedance: 10 kΩ
Nominal Level: LINE 4 dBu
Maximum Level: LINE 16 dBu
Nominal Level: MIC –22 dBu
Maximum Level: MIC -10 dBu
Source Impedance: 600 Ω
USB-B
24-bit, Sample Rate: 48 kHz, 2 channels Control Inputs Damper pedal (half damper supported)
Assignable switch, Assignable pedal MIDI In, Out, Thru USB USB A (TYPE A)
For connection to external USB devices (QWERTY keyboards, MIDI controllers, ethernet adaptors, and storage)
USB B (TYPE B)
MIDI/audio interface, MIDI: 1 (16 channel) input / 1 (16 channel) output, Audio: 2 channel input / 2 channel output
2 USB high-speed ports (supports 480Mbps) Disk Drives 60 GB SSD (2.5") Power Supply AC power supply terminal, Power switch Dimensions: (W x D x H) 88 key: 1,437 x 387 x 139 mm / 56.57" x 15.24" x 5.47"
73 key: 1,227 x 386 x 116 mm / 48.31" x 15.20" x 4.57"
61 key: 1,062 x 386 x 116 mm / 41.81" x 15.20" x 4.57" Weight 88 key: 23.1 kg / 50.93 lbs.
73 key: 14.6 kg / 32.19 lbs.
61 key: 13.0 kg / 28.66 lbs. Power Consumption 40 W Accessories AC cord, Quick Start Guide Option XVP-20: Expression/Volume Pedal
EXP-2: Foot Controller
DS-1H: Damper Pedal
PS-1: Pedal Switch
PS-3: Pedal Switch
