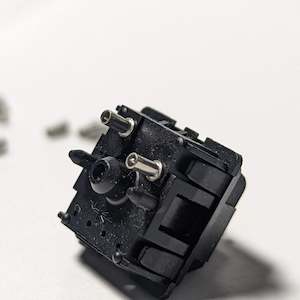

Mill Max 3305
If you want to make your keyboard hot-swappable then this is the only way to go.
3305 is specially made for keyboard switches so it has minimal protrude from the top of the PCB. The length of the mill max is smaller than the switch pins, so won't ever short on the case.
3305. This is the way.
Please note you need two sockets per switch.
Specs: Length: 2.67 mm Outside Diameter: 1.47 mm Material: Beryllium Copper Brand: Mill-Max Contact Material: Beryllium Copper Current Rating: 4.5 A Inside Diameter: 1.3 mm Mounting Hole Size: 1.524 mm
×
