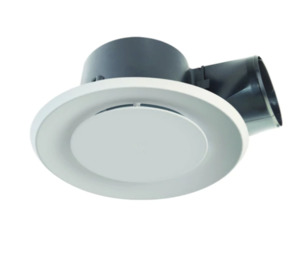

Rapid Response Fan with Diffuser 150mm Duct

- The Rapid Response ceiling-mounted header box fan features a fully optimized inlet cone and centrifugal impeller that maximizes air pressure and ensures rooms are quickly cleared of steam and unpleasant odors.

- Its clever design includes a unique swing clip and a removable spigot that makes it very easy to install.

Typical Application:

- Exhausts from residential or light commercial applications such as toilets, bathrooms, laundries, kitchens, and ensuites.
- Its low profile compact design and side exhaust outlet make it suitable for mounting between floors and applications with low ceiling heights such as cathedral ceilings.

Features:

- Advanced impeller and housing design provides powerful airflow and minimizes noise.
- High-strength swing clips make installation easy.
- Low resistance non-return backdraft damper maximizes airflow performance.
- Easy to remove diffuser makes cleaning simple.
- Can be retrofitted into a standard 10" round fan cut out.
- Fitted plug and lead simplifies installation.
- Housing and grille are made from injected moulded plastic.

Specifications:

- Colour White
- Airflow (m3/hr) 349 m3/hr
- Capacity (L/sec) 97 L/sec
- Fan Speed 18rps
- Motor Wattage 60watts
- Voltage 240v
- Noise Level 37 Db(A) @3M
- IP Rating IPX4
- Cut-Out Size Ø 290mm
- Duct Size 150mm
- Warranty 3 years

Rapid Response Grilles:

- The stylish and modern Rapid Response grille is available in round and square designs with white finish.
- Innovative design allows grilles to be easily removed for cleaning.
- Quick and easy to install to fan body.
- Can be retrofitted to a previously installed Rapid Response fan.
