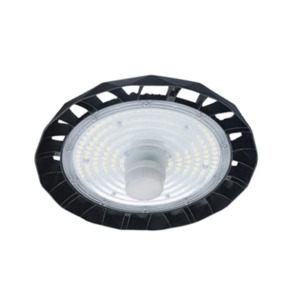

LED High Bay w/Sensor Power Selectable 120W/160W/220W CCT

Pluto Highbay CCT / Wattage Selectable with removable PIR Sensor

Features: PLUTO

- Removable PIR Sensor
- 3x Colour Temperature Selectable
- 3x Wattage Selectable
- Replaceable Surge Protection Device (SPD) 10kV
- 5m cord, with plug

Specification:

- Voltage – 230V
- IP Rating - IP65
- Lamp Technology – LED
- Beam angle - 90° with PC Lens
- Lamp Life: L70 50,000
- Lumen Effiacy: 170lm/w
- CCT Switchable - 4000K - 5000K - 6000K
- Wattage Selectable - 200W - 160W - 120W
- SPD specification:10kV, full specification supplied on request.
- 5m cord supplied with plug fitted

Physical size:

- φ330 182mm (152mm without sensor 30mm Sensor)

Sensor Specification:

- PIR Sensor
- Power Supply: 12V-24V DC, >50mA
- Dim Control Output:0-10V
- Detection Radius: 20%, 50%, 75%, 100% (1-8m) radius reduced with diffuser accessory
- Detection Height up to: Max 40ft. (12 Metres)
- Time Setting: 10s - 1min - 5min - 10min - 15min - 20min - 30min - 60min
- Light Control: 24H 10LUX - 30LUX - 50LUX
- Temperature: -40°C - 70°C

Accessories available: Sold Separately

- Diffuser (PLUTODIFFUSER)
- Remote (PLUTOREMOTE)
