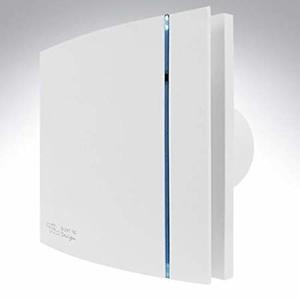

Extractor Fan Silent Design Series 150mm Duct Size

The Silent Design Series exhaust fans bring style and elegance to the engineering brilliance of the Silent wall fan range. (SILDES300CZ3C-W)

They feature an advanced vibration-absorbing design to ensure quiet operation and powerful airflow performance.

Features:

- Quiet operation due to its noise and vibration absorbing design.
- Low loss foil backdraft damper is standard on all models.
- Internal thermal motor cut out protection.
- 220-240V, single-phase, 50Hz supply.
- Comes with 5 Years Warranty
- Ideal for modern homes and commercial application
- Can be used to exhaust along with a short length of the duct.
- Manufactured from injection molded plastic.
- All units have weather and impact resistant housings.
- Backdraft damper
- IP45 rated

Specifications:

- Duct size: 150mm
- Cut Out: 146mm
- Fan speed: 2150rpm
- Air Flow: 300 m3/hr or 83 L/sec
- Acoustic noise: 42dB @ 3m
- Dimensions: 247(W) x 247(H) x 179(D)mm
- Rated voltage: 220-240v
- Frequency: 50Hz
- Rated Power: 22watt

It is essential allowances be made for pressure losses in the duct to ensure air flows will meet the requirements of the application.
