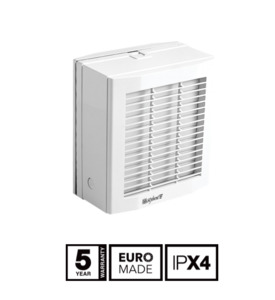

Extractor Fan Wall/Window Mounted 150mm Duct Size Stylvent Series

The Stylvent Series can be wall or window mounted making them well suited for a wide range of general residential and commercial exhaust or supply ventilation applications. (HV-150AE)

Typical Application:
Exhaust air in toilets, shower rooms, conference rooms, living rooms, restaurants,. in both domestic and commercial installations.

Features:

- 150mm duct size
- Electric shutters prevent outside air entering the building when the fan is switched off.
- IPX4 rated.
- Tough and long-lasting ABS plastic.
- Maximum ambient of 40°C.
- Easy to clean removable cover.
- 5years Warranty

Specifications:

- Hole Cut-out: 185-190mm
- Rated voltage: 240v
- Frequency: 50Hz
- Rated Power: 32w
- Duct size: 150mm
- Fan speed: 1800rpm
- Air Flow: 225 cube metres/hr or 63L/sec
- Acoustic noise: 39dB @ 3m
- IP Rating: IPX5
- Dimensions: 230(W) x 251(H) x 110(D)mm
