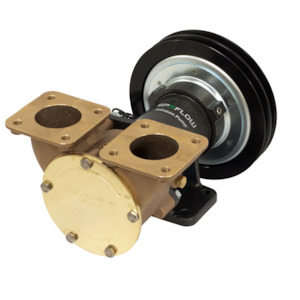

JOHNSON F8B-5000 TSS Extra Heavy Duty Electro-Magnetic Clutch Pump

F8B-5000 TSS Manual

With an Electro-Magnetic Clutch, you will have pumping power whenever needed, at a push of a button, without being at the pump. Combined with a vacuum switch (recommended for bilge pump application), the clutch will automatically disengage whenever the pump starts priming air, thereby preventing dry running and pump damage.

The Heavy-Duty range of multi-purpose bronze pumps are raw water resistant and have a compact design. These pumps are designed for a number of applications onboard and have gained a time-tested reputation for quality and reliability.

Specifications:

- Pump Body: Bronze

- Seal: Mechanical seal

- Impeller: 09-1028B

- Connection: 1" BSP

- Length: 226mm
- Width: 120mm
- Height to shaft: 50mm
- Weight: 6.9kg

- Flow Rate: 107.0LPM @30KPA and 2000RPM
