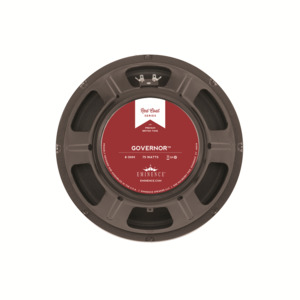

Eminence - The Governor

The Eminence Governor guitar speaker is the natural upgrade for the classic American amp. A versatile guitar speaker, great for southern rock or blues. Nice tight low-end, smooth midrange and top end sparkle. British cousin to Red White and Blues.

Specifications: Nominal Basket Diameter 12", 305 mm Nominal Impedance 8 Ω Power Rating : Program Power N/A Watts 75 W Resonance 101 Hz Usable Frequency Range 80 Hz - 4.2 kHz Sensitivity 102.3 dB Magnet Weight 56 oz. Gap Height 0.312", 7.9 mm Voice Coil Diameter 1.75", 44 mm THIELE & SMALL PARAMETERS: Resonant Frequency (fs) 101 Hz DC Resistance (Re) 6.81 Ω Coil Inductance (Le) 0.41m H Mechanical Q (Qms) 11.41 Electromagnetic Q (Qes) 0.59 Total Q (Qts) 0.56 Compliance Equivalent Volume (Vas) 30.1 liters / 1.06 cu.ft. Peak Diaphragm Displacement Volume (Vd) 64.4 cc Mechanical Compliance of Suspension (Cms) 0.08 mm/N BL Product (BL) 15.3 T-M Diaphragm Mass Inc. Airload (MMs) 32 grams Efficiency Bandwidth Product (EBP) 171 Maximum Linear Excursion (Xmax) 1.24 mm Surface Area of Cone (Sd) 519.5 cm2 Maximum Mechanical Limit (Xlim) N/A MOUNTING INFORMATION: Recommended Enclosure Volume: Sealed Acceptable Vented Acceptable Driver Volume Displaced 0.079 cu.ft. / 2.25 liters Overall Diameter 12.03", 305.6 mm Baffle Hole Diameter 11.07", 281.2 mm Front Sealing Gasket Yes Rear Sealing Gasket Yes Mounting Holes Diameter 0.25", 6.4mm Mounting Holes B.C.D. 11.59", 294.4mm Depth 5.2", 132.1 mm Net Weight 10.8 lbs, 4.9 kg Shipping Weight 12.6 lbs, 5.72 kgs MATERIALS OF CONSTRUCTION: Coil Construction Copper voice coil Coil Former Nomex former Magnet Composition Ferrite magnet Core Details Non-vented core Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Paper cone edge Dust Cap Composition Zurette dust cap
