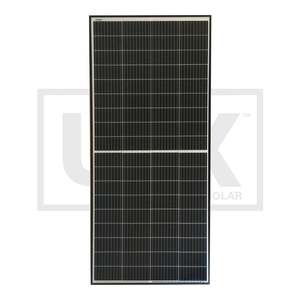

250 Watt Mono Solar Panel - Half Cut HPBC - 157 cm x 77 cm
250W monocrystalline solar panel, perfect for caravans, motorhomes, boats and off-grid solar applications. Sleek design, featuring a black frame and state-of-the-art HPBC solar technology, including monocrystalline half-cells designed to combat shading. Why this panel
- Compact 1570 × 770 mm footprint — fits caravan, motorhome and boat roofs where space is tight
- HPBC monocrystalline half-cut cells keep producing even when part of the panel is shaded
- Tough anodised aluminium frame rated for snow loads to 5400 Pa and wind loads to 2400 Pa
- Waterproof IP67 junction box and a 90 cm cable with MC4 connectors — built for New Zealand marine and off-grid conditions Specifications
- Rated Power: 250 W
- Solar Cell Type: HPBC Solar Cell
- Number of Cells: 64
- Module Size: 1570 x 770 x 35 mm
- Module Weight: 11.9 kg
- Connector / Cross Section: MC4 / 4 mm²
- Frame: Anodised Aluminium
- Voltage at Pmax (Vmp): 18.25 V
- Current at Pmax (Imp): 13.69 A
- Open Circuit Voltage (Voc): 21.46 V
- Short-Circuit Current (Isc): 15.22 A Certifications & build
Manufactured according to International Quality standard (ISO9001). Certifications and standards include IEC61215, IEC61730 and Class C fire rating conformity to CE. Includes a waterproof IP67 junction box, and the strong aluminium frame can bear snow loads up to 5400Pa and wind loads of up to 2400Pa. Includes a 90cm cable ending in MC4 Connector Plugs. Complete your installation
Everything you need to get this panel on the roof and charging:
- Mounting brackets & cable glands — aluminium or ABS mounts and IP68 roof cable entries to suit fixed panels.
- Solar cable, MC4 connectors & fuses — correctly sized cable and TUV-certified connectors for the run to your controller.
- A solar charge controller — pair with an MPPT charge controller sized to your battery bank.
Not sure what to pair it with? Our AnyKit™ sizing tool matches panel and battery capacity to the way you actually use power. Delivery
FREE pick-up from our Panmure, Auckland store. Solar panels ship nationwide from $0 (Auckland central) to $29.99 (rural South Island) — see the Shipping details above for your exact rate.
