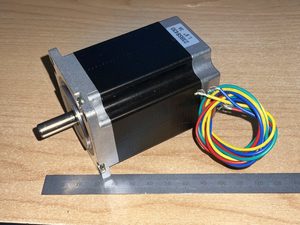

NEMA23 Stepper Motor 255 oz-in 1.8°/step

(inc. GST)

SKU: 23HS8430 Category: Stepper Motors

Tweet This Product

Pin This Product

- Additional information

This is a hybrid stepping motor with 2-phases and 4-wire bipolar windings. General Specification:

- Model Number: 23HS8430
- Shaft Diameter:8mm with 2 flat faces
- Step Angle: 1.8° (200 step/rev)
- Motor Length: 76 mm
- Rated Current: 3.0 Amps per phase
- Phase Resistance: 1.0 ohms
- Phase Inductance: 3.5 mH
- Holding Torque: 255 oz-in / 180 N.cm
- Detent Torque: 5 N.cm max
- Rotor Inertia:440 g.cm2
- Weight: 1050g Wiring:

- Red: A
- Green: A
- Yellow: B
- Blue: B-

Step angle accuracy: ±5%(full step, no load)

Resistance accuracy: ±10%

Inductance accuracy: ±20%

Temperature rise: 80°C Max(rated current,2 phase on)

Ambient temperature: -20° ~ 50°C

Insulation resistance:100MΩ Min,500VDC

Insulation Strength: 500VAC for one minute Additional information Weight 1060.0 g Dime...
