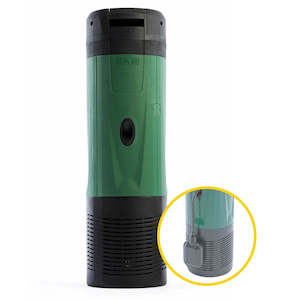

DAB-DTRON2 45/90A - 7" Electronic Multistage Submersible Pump with Float 105L/Min 45m Head 1.0KW

- 7" Electronic Multi Stage Pump
- Technology Advanced & Easy to Use
- The External Float detects the level of water in a tank , preventing emptying of the tank and avoiding dry running due to low water level
- The Bleed Valve allows immediate priming upon initial installation
- The modular components of the pump make it easier to perform maintenance
- The integrated expansion vessel prevents it from restarting unnecessarily, provides protection against hammering effects and extends the life of the pump
- The DOC68 accessory and IP68 certification, allows the DTRON Pumps to be installed even out of water and used like real traditional booster pumps
- Large range to suit most applications
- Ergonomic Carry Handle for easy transportation and installation
- Resistance to high and low temperatures
- Certified for Drinking Water Warranty 2 Year Pump Parts and Labour Warranty Features The DTron 2 and DTron 3 were born out of a desire to create a range of pumps that could be “easy" but also extremely efficient.
Technologically advanced and easy to use. Reliable and high performing in varied applications, supported by a set of smart accessories.
MAXIMUM FLOW RATE Up to 105 l/min MAXIMUM HEAD Up to 45m P1 Up to 1kW P2 NOMINAL P2 NOMINAL MAXIMUM IMMERSION DEPTH 12m MAX AMBIENT AND LIQUID TEMPERATURE: 50°C FACTORY CUT-IN: 2.4 bar (±0.2) DELIVERY FLANGE OR THREAD: Threaded from 1" ¼ PUMP MAXIMUM DIAMETER: 185 mm DIMENSIONS: DTron 2: 611 x 185mm
DTron 3: 651 x 185mm

Product Code DAB DTRON 2 45/90A
Technical Specifications Brand DAB Pumps Bar 4.4 Flow Range Category b. 100 - 199 L/min Flow Rate (L/min) 105 Kilo Watts 0.6 Head Range Category b. 40 - 59 m Max Head (m) 45 Port Size Outlet 1 1/4" BSPF outlet Volts 240
and Data Sheets1
and Data Sheets2
Spare Parts Information and Exploded Diagrams
Operation and Installation Manuals
Certificates & Compliance Information
Price includes GST
