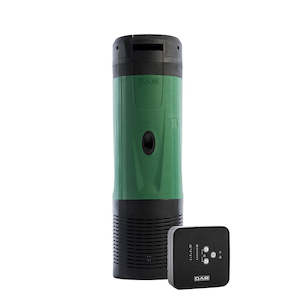

DAB-DTRON3 45/90 - 7" Electronic Multistage Submersible Pump with Com Box 120L/Min 45m Head 1.0KW

- 7" Electronic Multi Stage Pump
- The Box allows you to change the pump's pressure settings and view alarms. No direct connections with the pump PLC (Power Line Communication) are required.
- The Optional External Float detects the level of water in a tank , preventing emptying of the tank and avoiding dry running due to low water level
- The Bleed Valve allows immediate priming upon initial installation
- The modular components of the pump make it easier to perform maintenance
- The integrated expansion vessel prevents it from restarting unnecessarily, provides protection against hammering effects and extends the life of the pump
- The DOC68 accessory and IP68 certification, allows the DTRON Pumps to be installed even out of water and used like real traditional booster pumps
- Large range to suit most applications
- Ergonomic Carry Handle for easy transportation and installation
- Resistance to high and low temperatures
- Certified for Drinking Water Warranty

2 Year Pump Parts and Labour Warranty

Product Code DAB DTRON3 45/90
Technical Specifications Brand DAB Pumps Bar 4.5 Flow Range Category b. 100 - 199 L/min Flow Rate (L/min) 105 Kilo Watts 0.93 Head Range Category b. 40 - 59 m Max Head (m) 45 Port Size Outlet 1 1/4" BSPF outlet Volts 240
and Data Sheets1
and Data Sheets2
Spare Parts Information and Exploded Diagrams
Operation and Installation Manuals1
Operation and Installation Manuals2
Certificates & Compliance Information
