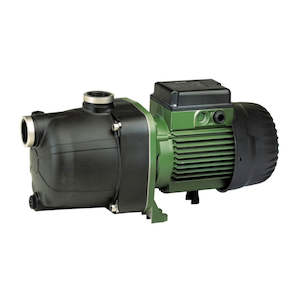

DAB-JETCOM102M - PUMP SURFACE MOUNTED (BARE PUMP) 60L/MIN 53.8M 0.75KW 240V

Self Priming Technopolymer Jet Self Priming Pump
0.75kW, 1.0hp, 240V, max hd 53.8m, max flow 60L/m Ports 1" BSPF In, 1" BSPF Out Features

- Corrosion resistant materials
- AS/NZS 4020 compliant
- Metal pump body inserts
- Air gap motor with shaft slinger
- Machined bearing housings
Self Priming Technopolymer Jet Pumps

- Suitable for domestic use for water supply and pressurisation, irrigation of gardens and moving water in general
- DAB Jet pumps are renowned for their unique self-priming and extraordinary deep suction capability up to 9 metres at sea level
- Available in Technopolymer, they are designed to handle abrasive and corrosive water which makes them ideally suited for spear point applications
Benefits

- Reliable in arduous suction conditions
- Safe for drinking water
- Longer life
- Repairable
- Robust and self priming design Advantages

- Proven efficient performance
- Will self prime to 9 metres
- Will not corrode
- No hazardous materials used
- Nickel plated brass inserts strengthens pump body
- Does not let water into motor if seal fails
- Correct tolerances Warranty

2 Year DAB Pumps Warranty
Product Code DAB-JETCOM102M
Technical Specifications Brand DAB Pumps Product Type Single Stage Jet Pump Bar 5.38 Suitable For Clean Water Approval Approved For Drinking Water Flow Range Category a. 0 - 99 L/min Flow Rate (L/min) 60 Hp 1 kPa 545 Kilo Watts 0.75 Head Range Category b. 40 - 59 m Max Head (m) 53.8 Port Size Inlet 1" BSPF inlet Port Size Outlet 1" BSPF outlet Powered Electric Volts 240 Warranty (months) 24 Watts 750
