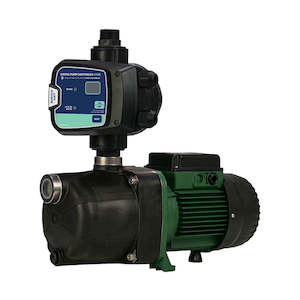

DAB-JETCOM102NXT - Technopolymer Surface Mounted Pump with nXt Pro Controller 53.8m 0.75kW 240V

nXt Controller Data Function ON/OFF Modes 1 Size 1.5Kw Rated Voltage 220-240V AC Max Amps 10 Rated Power 1500w Rating IP65 Union Size 1" Start Pressure 2.2 bar (32PSi) Stop Pressure on no flow Max Pressure 10 bar (145PSI) Max Liquid Temp 40°C Cable to Pump Plug and Play Flylead for Pump When sold as control only Power Cable 10AMP Communication - Accessories (Sold Separately) - 1 ¼" Union Kit

Spare Parts
Code Part Number 702087 DABSR00010537 ASSEMBLY ACTIVEJ82M-N.6 702135 DABSR00010762 BOARD ACTIVEEI25/30M-N.7 702158 DABSR00005107 FAN ACTIVEEI40/50M-N.9 702121 DABSR00004650 FAN GUARD ACTIVEEI40/50M-N.9 702190 DABSR00005153 IMPELLER ACTIVEJI102M-N.6 702084 DABSR00004017 LOAD PLUG ACTIVEEI25/30M-N.7 702188 DABSR00005151 MOTOR SHAFT ACTIVEJI102M-N.6 702161 DABSR00005110 NUTS AND BOLTS JETCOM102M-N.3 702085 DABSR00004018 PLUG ACTIVEEI25/30M-N.7 702157 DABSR00005106 PUMP BODY JETCOM102M-N.3 702199 DABSR00005178 SUPPORT JETCOM102M-N.3

Product Code DAB-JETCOM102CORE
Technical Specifications Brand DAB Pumps Product Type Pressure System Bar 5.3 Suitable For Clean Water Approval Drinking Water Approval Amps 5.1 Flow Range Category a. 0 - 99 L/min Flow Rate (L/min) 60 Float No Hp 1 kPa 527 Kilo Watts 0.75 Max Flow (L/min) 60 Head Range Category b. 40 - 59 m Max Head (m) 53.8 Port Size Inlet 1" BSPF inlet Port Size Outlet 1" BSPM outlet Powered Electric Taps 6 Volts 240 Warranty (months) 24 Watts 750
and Data Sheets1
and Data Sheets2
and Data Sheets3
Operation and Installation Manuals
Certificates & Compliance Information1
Certificates & Compliance Information2
Price includes GST
