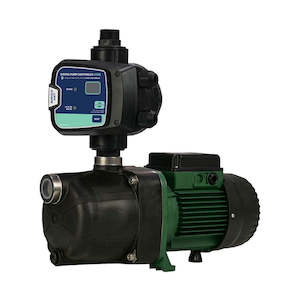

DAB-JETCOM132NXT - Technopolymer Surface Mounted Pump with nXt Controller 48m 1.0kW 240V

nXt Controller Data Function ON/OFF Modes 1 Size 1.5Kw Rated Voltage 220-240V AC Max Amps 10 Rated Power 1500w Rating IP65 Union Size 1" Start Pressure 2.2 bar (32PSi) Stop Pressure on no flow Max Pressure 10 bar (145PSI) Max Liquid Temp 40°C Cable to Pump Plug and Play Flylead for Pump When sold as control only Power Cable 10AMP Communication - Accessories (Sold Separately) - 1 ¼" Union Kit

Product Code DAB-JETCOM132CORE
Technical Specifications Brand DAB Pumps Product Type Pressure System Bar 4.7 Suitable For Clean Water Approval Drinking Water Approval Amps 6.6 Flow Range Category a. 0 - 99 L/min Flow Rate (L/min) 80 Float No Hp 1.36 kPa 470 Kilo Watts 1 Max Flow (L/min) 80 Head Range Category b. 40 - 59 m Max Head (m) 48 Port Size Inlet 1" BSPF inlet Port Size Outlet 1" BSPM outlet Powered Electric Taps 8 Volts 240 Warranty (months) 24 Watts 1000
and Data Sheets1
and Data Sheets2
and Data Sheets3
Spare Parts Information and Exploded Diagrams
Operation and Installation Manuals
Certificates & Compliance Information
Price includes GST
