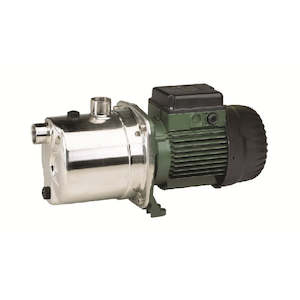

DAB-JINOX132M - PUMP SURFACE MOUNTED JET 80L/MIN 48M 1.0KW 240V

1.0kW, 1.36hp, 240V, max hd 48m, max flow 80L/m Ports 1" BSPF In, 1" BSPF Out
Features Self Priming Stainless Steel Jet Pumps

Suitable for water supply in domestic installations, small-scale agriculture and gardening.
2 Year DAB Pumps Warranty Spare Parts
Code Part Number 702194 DABSR00005164 ASSEMBLY ACTIVEJI132M-N.6 702135 DABSR00010762 BOARD ACTIVEEI25/30M-N.7 702189 DABSR00005152 BOLTS ACTIVEJI102M-N.6 702181 DABSR00010362 25UF PRONG DAB CAPACITOR 25 uF 702158 DABSR00005107 FAN ACTIVEEI40/50M-N.9 702121 DABSR00004650 FAN GUARD ACTIVEEI40/50M-N.9 702192 DABSR00005158 IMPELLER ACTIVEJI132M-N.6 702084 DABSR00004017 LOAD PLUG ACTIVEEI25/30M-N.7 702182 DABSR00005141 MOTOR ACTIVEEI40/50M-N.9 702191 DABSR00005157 MOTOR SHAFT ACTIVEJI132M-N.6 702085 DABSR00004018 PLUG ACTIVEEI25/30M-N.7 702183 DABSR00005144 PUMP BODY ACTIVEJI102M-N.6 702119 DABSR00009575 SEAL ACTIVEJ82M 702187 DABSR00005150 SUPPORT ACTIVEEI40/50M-N.9

Product Code DAB-JINOX132M
Technical Specifications Brand DAB Pumps Product Type Single Stage Jet Pump Bar 4.8 Suitable For Clean Water Approval Approved For Drinking Water Flow Range Category a. 0 - 99 L/min Flow Rate (L/min) 80 Hp 1.36 kPa 486 Kilo Watts 1 Head Range Category b. 40 - 59 m Max Head (m) 48 Port Size Inlet 1" BSPF inlet Port Size Outlet 1" BSPF outlet Powered Electric Volts 240 Warranty (months) 24 Watts 1000
and Data Sheets1
and Data Sheets2
and Data Sheets3
Spare Parts Information and Exploded Diagrams
Operation and Installation Manuals1
Operation and Installation Manuals2
Certificates & Compliance Information
Price includes GST
