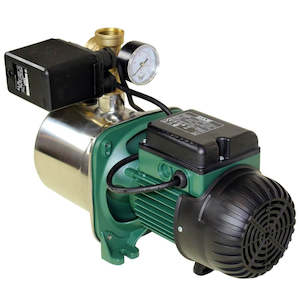

DAB-JINOX132MP - PUMP SURFACE MOUNTED JET WITH PRESSURE SWITCH 80L/MIN 48M 1.0KW 240V

1.0kW, 1.36hp, 240V, max hd 48m, max flow 80L/m, 8 taps Ports 1" BSPF In, 1" BSPF Out. Includes NRV
Features Self Priming Stainless Steel Jet Pressure Pumps

PRESSURE TANKS SOLD SEPARATELY
2 Year DAB Pumps Warranty Spare Parts
Code Part Number 702194 DABSR00005164 ASSEMBLY ACTIVEJI132M-N.6 702135 DABSR00010762 BOARD ACTIVEEI25/30M-N.7 702189 DABSR00005152 BOLTS ACTIVEJI102M-N.6 702181 DABSR00010362 25UF PRONG DAB CAPACITOR 25 uF 702158 DABSR00005107 FAN ACTIVEEI40/50M-N.9 702121 DABSR00004650 FAN GUARD ACTIVEEI40/50M-N.9 702192 DABSR00005158 IMPELLER ACTIVEJI132M-N.6 702084 DABSR00004017 LOAD PLUG ACTIVEEI25/30M-N.7 702182 DABSR00005141 MOTOR ACTIVEEI40/50M-N.9 702191 DABSR00005157 MOTOR SHAFT ACTIVEJI132M-N.6 702085 DABSR00004018 PLUG ACTIVEEI25/30M-N.7 702183 DABSR00005144 PUMP BODY ACTIVEJI102M-N.6 702119 DABSR00009575 SEAL ACTIVEJ82M 702187 DABSR00005150 SUPPORT ACTIVEEI40/50M-N.9
Product Code DAB-JINOX132MP
Technical Specifications Brand DAB Pumps Product Type Pressure System Bar 4.8 Suitable For Clean Water Approval Approved For Drinking Water Flow Range Category a. 0 - 99 L/min Flow Rate (L/min) 80 Hp 1.36 kPa 486 Kilo Watts 1 Head Range Category b. 40 - 59 m Max Head (m) 48 Port Size Inlet 1" BSPF inlet Port Size Outlet 1" BSPF outlet Powered Electric Taps 8 Volts 240 Warranty (months) 24 Watts 1000

and Data Sheets1
and Data Sheets2
Spare Parts Information and Exploded Diagrams
Operation and Installation Manuals1
Operation and Installation Manuals2
Certificates & Compliance Information
Price includes GST
