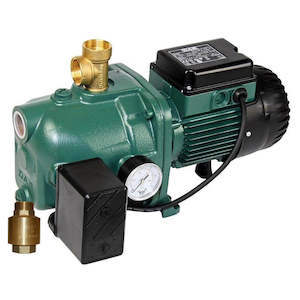

DAB-82MP - PUMP SURFACE MOUNTED JET WITH PRESSURE SWITCH 60L/MIN 47M 0.60KW 240V

0.60kW, 0.8hp, 240V, max hd 47m, max flow 60L/m, 6 taps Ports 1" BSPF In, 1" BSPF Out. Includes NRV. Features Self Priming Cast Iron Jet Pressure Pumps

2 Year DAB Warranty Spare Parts
Code Part Number 702087 DABSR00010537 ASSEMBLY ACTIVEJ82M-N.6 702135 DABSR00010762 BOARD ACTIVEEI25/30M-N.7 702079 DABSR00008871 12.5UF CAPACITOR ACTIVEEI30/50M-N.8 702077 DABSR00004002 FAN ACTIVEEI25/30M-N.7 702080 DABSR00004010 IMPELLER ACTIVEJ82M-N.6 702084 DABSR00004017 LOAD PLUG ACTIVEEI25/30M-N.7 702176 DABSR00005131 MOTOR ACTIVEEI30/50M-N.8 702081 DABSR00004011 MOTOR COVER ACTIVEEI25/30M-N.7 702085 DABSR00004018 PLUG ACTIVEEI25/30M-N.7 702076 DABSR00004000 PUMP BODY ACTIVEJ82M-N.6 702119 DABSR00009575 SEAL ACTIVEJ82M 702078 DABSR00004003 SUPPORT ACTIVEJ82M-N.6

Product Code DAB-82MP
Technical Specifications Brand DAB Pumps Product Type Pressure System Bar 4.7 Suitable For Clean Water Approval Approved For Drinking Water Flow Range Category a. 0 - 99 L/min Flow Rate (L/min) 60 Hp 0.8 kPa 476 Kilo Watts 0.6 Head Range Category b. 40 - 59 m Max Head (m) 47 Port Size Inlet 1" BSPF inlet Port Size Outlet 1" BSPF outlet Powered Electric Taps 6 Volts 240 Warranty (months) 24 Watts 600
and Data Sheets1
and Data Sheets2
and Data Sheets3
Spare Parts Information and Exploded Diagrams1
Spare Parts Information and Exploded Diagrams2
Operation and Installation Manuals1
Operation and Installation Manuals2
Certificates & Compliance Information
Price includes GST
