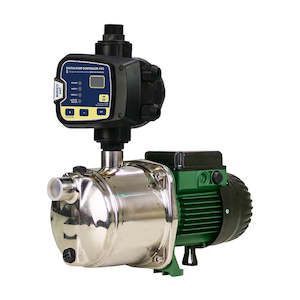

DAB-EUROINOX40/50NXTP - S/S Horizontal Multi Stage Pump with nXt PRO Pump Controller 57.7m 0.8kW

nXt PRO Controller Data Function ON/OFF Config Modes 2 Size 2.2Kw Rated Voltage 220-240V AC Max Amps 16 Rated Power 2200w Rating IP65 Union Size 1" Start Pressure Adjustable Stop Pressure Adjustable Max Pressure 10 bar (145PSI) Max Liquid Temp 40°C Cable to Pump Plug and Play Flylead for Pump When sold as control only Power Cable 10AMP Communication - Accessories (Sold Separately) 15 AMP Cable 1 ¼" Union Kit

Product Code DAB-EUROINOX40/50PRO
Technical Specifications Brand DAB Pumps Product Type Pressure System Bar 5.7 Suitable For Clean Water Approval Drinking Water Approval Amps 5.3 Flow Range Category a. 0 - 99 L/min Flow Rate (L/min) 80 Float No Hp 1.1 kPa 565 Kilo Watts 0.8 Max Flow (L/min) 80 Head Range Category b. 40 - 59 m Max Head (m) 57.7 Port Size Inlet 1" BSPF inlet Port Size Outlet 1" BSPM outlet Powered Electric Taps 8 Volts 240 Warranty (months) 24 Watts 800
and Data Sheets1
and Data Sheets2
Spare Parts Information and Exploded Diagrams1
Spare Parts Information and Exploded Diagrams2
Spare Parts Information and Exploded Diagrams3
Spare Parts Information and Exploded Diagrams4
Spare Parts Information and Exploded Diagrams5
Operation and Installation Manuals
Certificates & Compliance Information1
Certificates & Compliance Information2
Price includes GST
