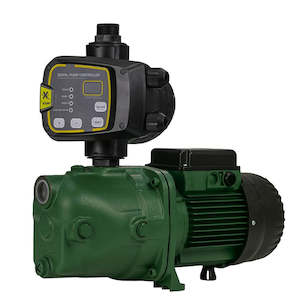

DAB-JET-132NXTP - Cast Iron Self Priming Pump with nXt Pro Controller 48m 1.0kW 240V

nXt PRO Controller Data Function ON/OFF Config Modes 2 Size 2.2Kw Rated Voltage 220-240V AC Max Amps 16 Rated Power 2200w Rating IP65 Union Size 1" Start Pressure Adjustable Stop Pressure Adjustable Max Pressure 10 bar (145PSI) Max Liquid Temp 40°C Cable to Pump Plug and Play Flylead for Pump When sold as control only Power Cable 10AMP Communication - Accessories (Sold Separately) 15 AMP Cable 1 ¼" Union Kit

Product Code DAB-JET132NXTP
Technical Specifications Brand DAB Pumps Product Type Pressure System Bar 4.7 Suitable For Clean Water Approval Drinking Water Approval Amps 6.6 Flow Range Category a. 0 - 99 L/min Flow Rate (L/min) 80 Float No Hp 1.36 kPa 470 Kilo Watts 1 Max Flow (L/min) 80 Head Range Category b. 40 - 59 m Max Head (m) 48 Port Size Inlet 1" BSPF inlet Port Size Outlet 1" BSPM outlet Powered Electric Taps 8 Volts 240 Warranty (months) 24 Watts 1000
and Data Sheets1
and Data Sheets2
and Data Sheets3
Price includes GST
