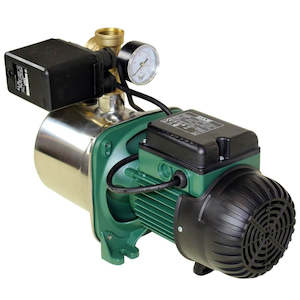

DAB-JINOX112MP - PUMP SURFACE MOUNTED JET WITH PRESSURE SWITCH 60L/MIN 61M 1.0KW 240V

1.0kW, 1.36hp, 240V, max hd 61m, max flow 60L/m, 6 taps Ports 1" BSPF In, 1" BSPF Out. Includes NRV
Features Self Priming Stainless Steel Jet Pressure Pumps

PRESSURE TANKS SOLD SEPARATELY
2 Year DAB Pumps Warranty Spare Parts
Code Part Number 702087 DABSR00010537 ASSEMBLY ACTIVEJ82M-N.6 702135 DABSR00010762 BOARD ACTIVEEI25/30M-N.7 702189 DABSR00005152 BOLTS ACTIVEJI102M-N.6 702181 DABSR00010362 25UF PRONG DAB CAPACITOR 25 uF 702158 DABSR00005107 FAN ACTIVEEI40/50M-N.9 702121 DABSR00004650 FAN GUARD ACTIVEEI40/50M-N.9 702192 DABSR00005158 IMPELLER ACTIVEJI132M-N.6 702084 DABSR00004017 LOAD PLUG ACTIVEEI25/30M-N.7 702182 DABSR00005141 MOTOR ACTIVEEI40/50M-N.9 702191 DABSR00005157 MOTOR SHAFT ACTIVEJI132M-N.6 702085 DABSR00004018 PLUG ACTIVEEI25/30M-N.7 702183 DABSR00005144 PUMP BODY ACTIVEJI102M-N.6 702119 DABSR00009575 SEAL ACTIVEJ82M 702187 DABSR00005150 SUPPORT ACTIVEEI40/50M-N.9

Product Code DAB-JINOX112MP
Technical Specifications Brand DAB Pumps Product Type Pressure System Bar 6.1 Suitable For Clean Water Approval Approved For Drinking Water Flow Range Category a. 0 - 99 L/min Flow Rate (L/min) 60 Hp 1.36 kPa 618 Kilo Watts 1 Head Range Category c. 60 - 99 m Max Head (m) 61 Port Size Inlet 1" BSPF inlet Port Size Outlet 1" BSPF outlet Powered Electric Taps 6 Volts 240 Warranty (months) 24 Watts 1000
and Data Sheets1
and Data Sheets2
Spare Parts Information and Exploded Diagrams1
Spare Parts Information and Exploded Diagrams2
Spare Parts Information and Exploded Diagrams3
Operation and Installation Manuals1
Operation and Installation Manuals2
Certificates & Compliance Information
