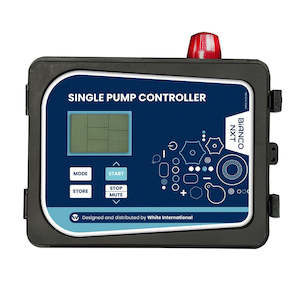

BIA-NXT-SPC1-22 - nXt Single Pump Control Panel 240V 0.37 - 2.2kW

The BiANCO NXT-SPC (Single Pump Controller) is a module intended to control and protect an individual single phase pump up to a nominal 2.2 kW The user can select a control logic sequence to match their application and enjoy the benefits of superior control and protection for the pump.

There are 3 primary control logic modes

- ‘Drainage’ where control is concentrated at the source
- ‘Boosting’, which references pressure switching for control
- ‘Transfer,’ which is a mix of source and destination control

NXT-SPC has 2 x passive dry contacts and is equipped with a RS485 modbus interface to connect to a BMS By digitally monitoring the running current, the response time of the BiANCO NXT SPC is superior to traditional analogue overload methods.

Product Code BIA-NXT-SPC1-22
Technical Specifications Brand Bianco iCON
and Data Sheets
Operation and Installation Manuals
Certificates & Compliance Information
Price includes GST
