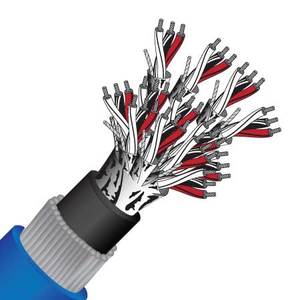

12 Triad, 0.5mm², TCW, ESCS, PVC 90°C, SWA, 110VAC, Instrumentation Cable (MAS5312ESCSSWA BLUE)

APPLICATION:

Suitable for use in intrinsically safe circuits. For use in signal transmission , process control , communication and data. Screened for protection against electromagnetic interference. Armoured for mechanical protection. Direct Burial.

CONSTRUCTION:

Stranded tinned copper conductors, V90 PVC insulation, twisted triad, individual and overall foil shield (100% coverage) with tinned copper drain wire, SPVC 5V-90 bedding, Galvanised Steel Wire Armour (SWA), Blue SPVC 5V-90 jacket with rip-cord. Datasheet (PDF) SKU: MAS53 ESCSSWA BLUE Category: Individual & Overall Screen Triads – Armoured – Intrinsically Safe Tags: Intrinsically Safe Cable, SWA #gap-617227963 padding-top: 30px; Contact Maser #text-277387562 text-align: center; #image 1407692026 width: 47%; @media (min-width:550px) #image 1407692026 width: 100%;
