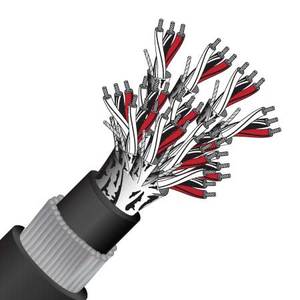

12 Triad, 1.5mm², TCW, ESCS, PVC 90°C, SWA, 110VAC, Instrumentation Cable (MAS5612ESCSSWA)

APPLICATION:

For use in signal transmission, process control, communication and data. Screened for protection against electromagnetic interference. Armoured for mechanical protection. Direct Burial.

CONSTRUCTION:

Stranded tinned copper conductors, V90 PVC insulation, twisted triad, individual and overall foil shield (100% coverage) with tinned copper drain wire, SPVC 5V-90 bedding, Galvanised Steel Wire Armour (SWA), SPVC 5V-90 jacket with rip-cord. Datasheet (PDF) SKU: MAS56 ESCSSWA Category: Individual & Overall Screen Triads – Armoured Tag: SWA #gap-256927568 padding-top: 30px; Contact Maser #text-3070138931 text-align: center; #image 1632795756 width: 47%; @media (min-width:550px) #image 1632795756 width: 100%;
