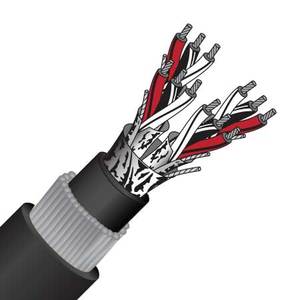

4 Triad, 1.5mm², TCW, ESCS, PVC 90°C, SWA, 110VAC, Instrumentation Cable (MAS5604ESCSSWA)

APPLICATION:

For use in signal transmission, process control, communication and data. Screened for protection against electromagnetic interference. Armoured for mechanical protection. Direct Burial.

CONSTRUCTION:

Stranded tinned copper conductors, V90 PVC insulation, twisted triad, individual and overall foil shield (100% coverage) with tinned copper drain wire, SPVC 5V-90 bedding, Galvanised Steel Wire Armour (SWA), SPVC 5V-90 jacket with rip-cord. Datasheet (PDF) SKU: MAS560 ESCSSWA Category: Individual & Overall Screen Triads – Armoured #gap-1769 0166 padding-top: 30px; Contact Maser #text-295002 716 text-align: center; #image 1055021391 width: 7%; @media (min-width:550px) #image 1055021391 width: 100%;
