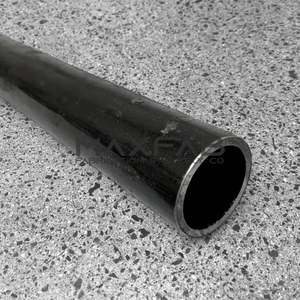

Steam Tube - Thick Wall Pipe

Thick wall pipe for fabrication of turbo manifolds. Made from mild steel SCH40 or stainless steel SCH10. Commonly referred to as schedule pipe, steam tube or line pipe

32NB - 32mm, 1-1/4"

40NB - 40mm, 1-1/2"

50NB - 50mm, 2"

These are measured on the ID, and referred to as nominal bore NB

SIZING

32NB Mild Steel

- Outside Diameter - 42mm
- Inside Diameter - 35.4mm
- Wall Thickness - 3.5mm

40NB Mild Steel

- Outside Diameter - 47.4
- Inside Diameter - 40.2mm
- Wall Thickness - 3.8mm

50NB Mild Steel

- Outside Diameter - 61mm
- Inside Diameter - 52.4mm
- Wall Thickness - 4.4mm

32NB Stainless Steel

- Outside Diameter - 42mm
- Inside Diameter - 36.4mm
- Wall Thickness - 2.7mm

40NB Stainless Steel

- Outside Diameter - 47.4mm
- Inside Diameter - 41mm
- Wall Thickness - 3.1m

50NB Stainless Steel

- Outside Diameter - 61mm
- Inside Diameter - 54.6mm
- Wall Thickness - 3.6mm
