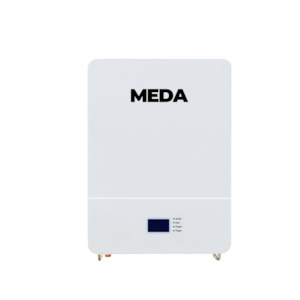

MEDA 48200 LPW - Wall mounted Battery 10kwh

MEDA Powerwall Batteries

Overview: Designed with precision, MEDA batteries are our proprietary creations, offering an entire decade's peace of mind with a full 10-year warranty. At their core are A grade Lithium cells sourced from the renowned Gotion Tech, seamlessly integrated with a high-performance BMS by Pace.

Design & Interface: A testament to modern aesthetics, our Powerwalls boast a sleek design without compromising utility. An interactive LCD screen, intuitively placed setting buttons, and all necessary cables make installations straightforward and user-friendly.

LiFePO4 - The Preferred Choice: For off-grid solar systems, there's no beating LiFePO4 Lithium batteries. Beyond their inherent safety and lightweight nature, they promise longevity (spanning well over a decade). Their rapid charge and discharge capabilities outclass lead-acid counterparts. What's more, they can be fully discharged without causing any harm – a feat unattainable by many other technologies, which typically hover around a 50% discharge threshold. This allows for a smaller battery bank that delivers more usable power for years on end. Features like over-current, over-voltage, temperature, and short-circuit protection are built-in, ensuring your safety remains uncompromised.

Certifications & Safety: Every Powerwall is backed by MSDS, UN38.3 certifications, and a 10-year manufacturer warranty, reflecting our commitment to safety and trust.

Expandability: Flexibility at its best - these Powerwalls can be paralleled up to 14 units, offering an impressive 70kWh of storage capacity.

Technical Specifications:

- Model : LFP48V100AH - LFP48V200AH
- Battery Capacity: 100Ah and 200Ah
- Nominal Battery Energy: 4.8kWh and 9.6kWh
- Max Discharge Current: 100A and 200A
- Weight: 68kg and 108kg respectively
- Dimensions HWD : 680x495x185mm for both
- Operating Temperature: -20°C to 50°C
- Life Cycles: >6000
- Nominal Voltage: 48Vdc
- Communication: CAN/RS485/DRY CONTACT
- Certifications: TUV / CE / EN62619 / IEC62040 / UN38.3
- Warranty: An all-inclusive 10 years
- Alerts: Highlights Battery Operation, Depletion, and System Faults
- Distinct Features: Designed for off-grid and hybrid systems, they boast a compact form and modular expansion capabilities. BMS protection is integrated into each module, with an embedded breaker ensuring utmost safety.
