PowerVault

18 Panels 7.92kW ~51.5 kWh/day ~27.7 kWh/day

Not sure what size you need?
👉 Use our Off-Grid Load Calculator to estimate your daily energy usage. 📦 What’s Included – Standard (10kWh / 10kVA / 18 Panels)

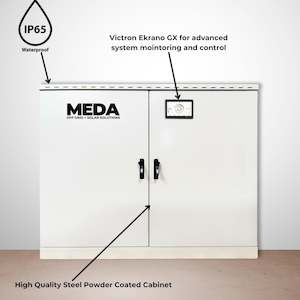

- Heavy Duty IP55 Steel Solar Cabinet (prewired)
- Victron Multiplus-II 48/10000/140-100/100 Inverter/Charger
- Victron SmartSolar MPPT 250/100 VE.Can
- Victron Ekrano GX RJ45 patch leads
- Victron Lynx Distributor M8
- 4 x Dyness DL5.0 Lithium Batteries (rack-mounted, stackable) – 20kWh total
- 18 x 440W DASolar Dual Glass Panels (N-Type, bifacial)
- EzRack Tin Roof Mounting Kit
- MC4 Solar Connectors & Solar Cable (40m)
- 6mm Earth Cable (20m)
- High-Current 300A Busbars (Red & Black)
- Suntree 250A DC MCCB Breaker
- Combiner Box – 3 in / 1 out
- Battery cabling: Tycab 25–70mm² Terminals
- Labour: Fully assembled and tested in-house 🛠 Built to Order – Fully Customisable

Whether you need a compact backup system or a full-scale off-grid installation, the can be configured to suit your unique energy needs. to customise your inverter size, battery storage, and solar array.

Note: MEDA recommends a licensed electrician for all 230V AC connections. Images for illustration only. Final spec depends on your selected configuration.
