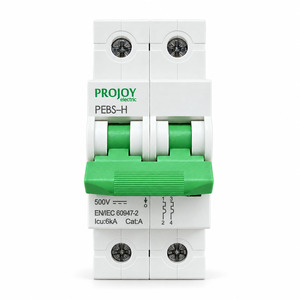

PROJOY DC Miniature Circuit Breaker PEBS-H-63 Series 32A 2P 500V

PROJOY DC Miniature Circuit Breaker PEBS-H-63 Series

SAA Certificated

HIGH CRAFTSMANSHIP AND HIGH STANDARDS
Small Volume
Short circuit Protection
Overload Protection
Flame Retardant
High Breaking Capability
Arcing Short
Complete Accessories
Multiple Wiring

Technical data
According to EN60947-2, AS/NZS IEC 60947.2
Pole: 2P
Rated Working Voltage Ue: 500 V DC
Frame Current: 63A
Rated Current In: 32A
Rated Insulation Voltage Ui: 1000V
Rated Impulse Withstand Voltage Uimp: 6kV
Tripping Characteristics: B/C
Tripping Type: Thermal Magnetic
Rated Ultimate Short-Circuit Breaking Capacity Icu: 6kA
Rated Service Short-Circuit Interrupting Capacity Ics: 6kA
Dimension: W 36mm x H 87.5mm
Weight: 0.24kg
